01Dedicated orientation
Vibratory bowl feeders
Purpose-designed bowls and tooling that separate, orient and present a defined component family to an automated process.
Explore vibratory bowl feedersSystem portfolio
Automated parts feeding systems for controlled production flow.
Compare the principal technologies used to store, separate, orient, inspect, buffer and present components to automated equipment.
Selection principle
There is no universal “best” parts feeder.
The right platform sustains the required accepted output while protecting the part and integrating cleanly with the downstream cycle.
Component geometry, stability, tangling, finish, format variety, orientation and queue behaviour are assessed together. Trials are used where behaviour cannot be established confidently from drawings alone.
Use the detailed feeder selection guideComplete portfolio
From bulk loading to the exact machine hand-off.
Each category can form a standalone module or one element within a complete guarded feeding system.
02High-speed rotary feeding

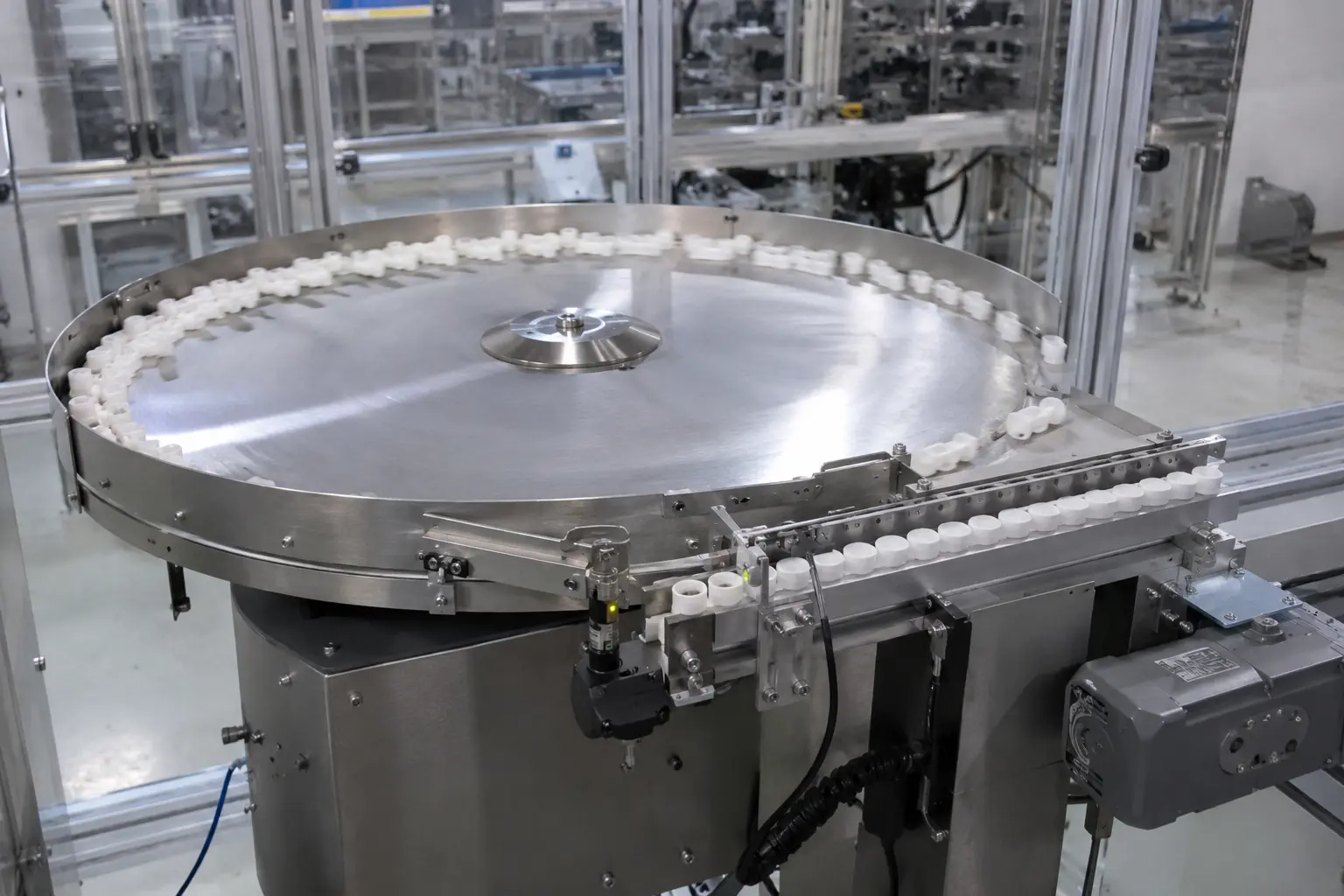

Centrifugal feeders
Rotary feeding platforms for suitable caps, closures and robust components where smooth, high-flow presentation matters.
Explore centrifugal feeders
03Quiet, gentle elevation

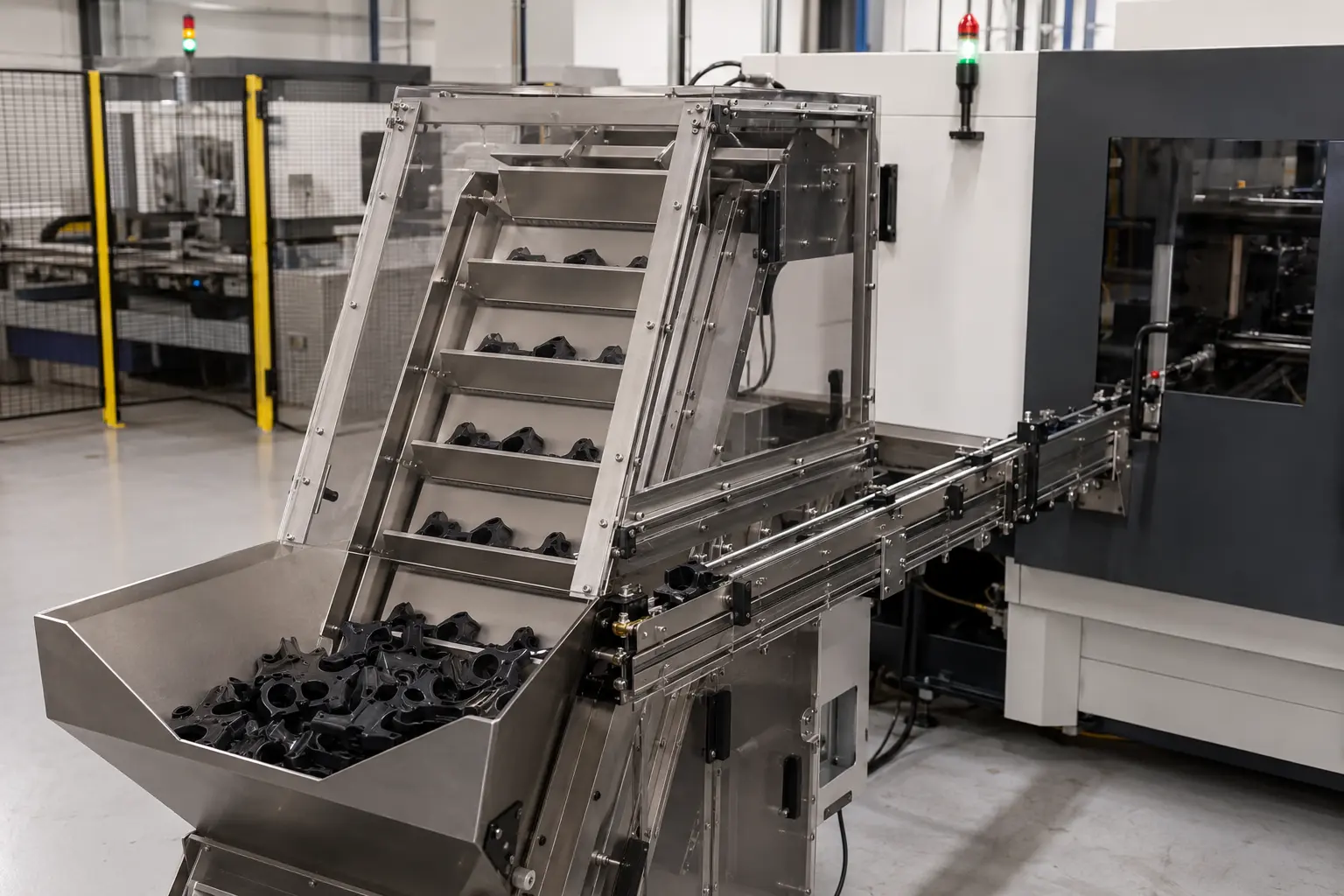

Step feeders
Low-vibration step lifting for components that benefit from quieter handling, reduced recirculation and a larger useful size range.
Explore step feeders
04Vision-guided flexibility

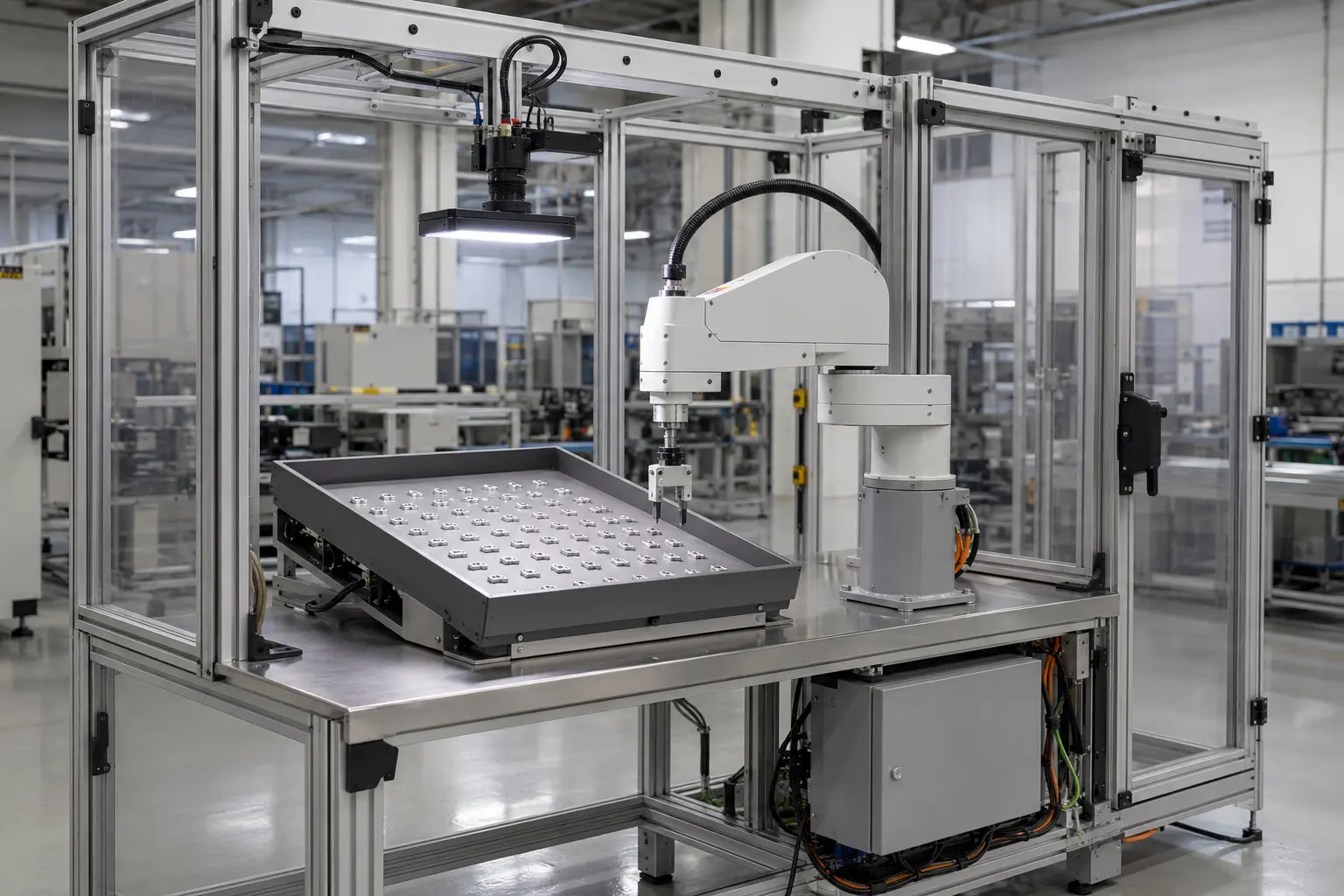

Flexible feeding systems
Programmable feeder platforms, controlled lighting, machine vision and robot picking for variant-rich production.
Explore flexible feeding systems
05Controlled machine hand-off
Linear feeders & escapements
Tracks, buffers, sensors and one-part release mechanisms that connect the feeder to the production cycle.
Explore linear feeders & escapements
06Controlled replenishment
Bulk hoppers & elevators
Bulk storage and metered replenishment that extend operating autonomy without overloading the orientation device.
Explore bulk hoppers & elevatorsAt-a-glance comparison
Use the technology table as a starting point.
Headline strengths narrow the field; representative component trials confirm the final design.
| Technology | Typical role | Strong starting fit | Important checks |
|---|---|---|---|
| Vibratory bowl | Dedicated orientation | Stable component families and compact automation | Noise, cosmetic contact, tangling, format flexibility |
| Centrifugal | Fast rotary presentation | Robust stable parts needing high continuous flow | Part dynamics, recirculation, exit buffer |
| Step feeder | Quiet component elevation | Larger, longer or noise-sensitive parts | Final orientation, overlap, return path |
| Flexible feeder | Vision-guided robot picking | Variant-rich, shorter-run production | Pick density, image quality, robot cycle |
| Linear track | Buffer and machine hand-off | Stable queue and one-part release | Back-pressure, sensing, escapement timing |
| Bulk hopper | Metered replenishment | Longer autonomy and consistent feeder loading | Bridging, drop height, safe loading access |
Systems can be combined
One project may use several feeding principles.
A hopper can replenish a bowl; a linear track can buffer output; vision can verify orientation; an escapement can release one part; and a robot can complete the final transfer.
- One agreed system boundary
- Coordinated control and fault states
- Accessible guarding and recovery
- One acceptance test for complete output
Straight answers
Choosing an automated parts feeder
Useful starting points. Final recommendations are based on your component, presentation requirement and machine cycle.
What is an automated parts feeding system?
An automated parts feeding system stores bulk components, separates them, establishes the orientation required by the process and presents accepted parts at a controlled rate. A complete system may include a hopper, bowl or flexible feeder, linear track, sensors, vision, buffering, an escapement, controls, guarding and the final machine interface.
Which type of parts feeder is best?
There is no universal best feeder. Vibratory bowls suit many dedicated component families; centrifugal feeders can suit high-speed stable parts; step feeders are useful for quieter or larger-component handling; and flexible vision-guided systems can suit frequent variants. Selection begins with the real component, required presentation and sustained machine demand.
How much does a parts feeding system cost?
Cost depends on component behaviour, orientation complexity, target rate, number of variants, bulk autonomy, inspection, controls, guarding and the downstream interface. A credible budget is prepared after a component and application review; a catalogue feeder price alone rarely represents a complete production system.
How fast can an automatic parts feeder run?
The achievable sustained rate is application-specific. Part geometry, stability, recirculation, inspection, buffer length and the release mechanism all affect accepted output. The correct figure is demonstrated under agreed test conditions with representative production components.
Do you need sample components to design a feeder?
Representative production samples are strongly recommended and may be essential. Drawings establish dimensions and tolerances, but physical trials reveal friction, bounce, nesting, tangling, surface marking and behaviour at the required speed.
Advanced project routes
New system pages for high-value automation requirements.
These routes combine feeding technology with robot, assembly or packaging integration.
Robotic bin picking systems
Vision-guided detection, robot picking, grippers and controlled part replenishment.
View robotic bin picking →Automatic screw feeding
Rail, blow-feed, escapement and pick-point solutions for fastening and assembly.
View screw feeding →Component counting & batching
Verified quantities discharged to baggers, cartons, kits or downstream machines.
View counting systems →Start with the real part
Choose a feeding principle using the real component.
Share the component, required orientation and sustained machine demand. We will help identify the most credible route to trial.
