Complete project scope

One engineered feed path. One defined production hand-off.

Bring bulk loading, orientation, inspection, buffering, controls, safeguarding and the downstream interface into one coherent parts-feeding project.

Ring-shaped components on a track beside sensors and a pneumatic cylinder.
System boundary

Define where the project starts and exactly where it finishes.

High-value feeder projects fail at grey interfaces, not at headline technology labels.

We establish responsibility for component loading, part condition, mechanical datum, utilities, controls, guarding, output verification, host-machine signals, reject handling, access and acceptance before detail design.

Project architecture

Eight connected work packages.

Each layer is reviewed against the same component, production rate and acceptance condition.

01

Bulk loading

Hopper capacity, safe loading height, component level and metered replenishment.

02

Primary feeding

Bowl, centrifugal, step, flexible or another principle chosen from real behaviour.

03

Orientation

Tooling and controlled rejection to establish the usable component presentation.

04

Verification

Sensors or vision for agreed orientation, presence, variant or visible feature checks.

05

Buffering

A stable queue sized to balance feeder output and the downstream machine cycle.

06

Escapement

One-part release, nest or pick position designed around the receiving process.

07

Controls & safety

I/O, modes, alarms, safe states, access and guarding responsibilities.

08

Acceptance

Documented conditions, samples, sustained rate and pass/fail criteria.

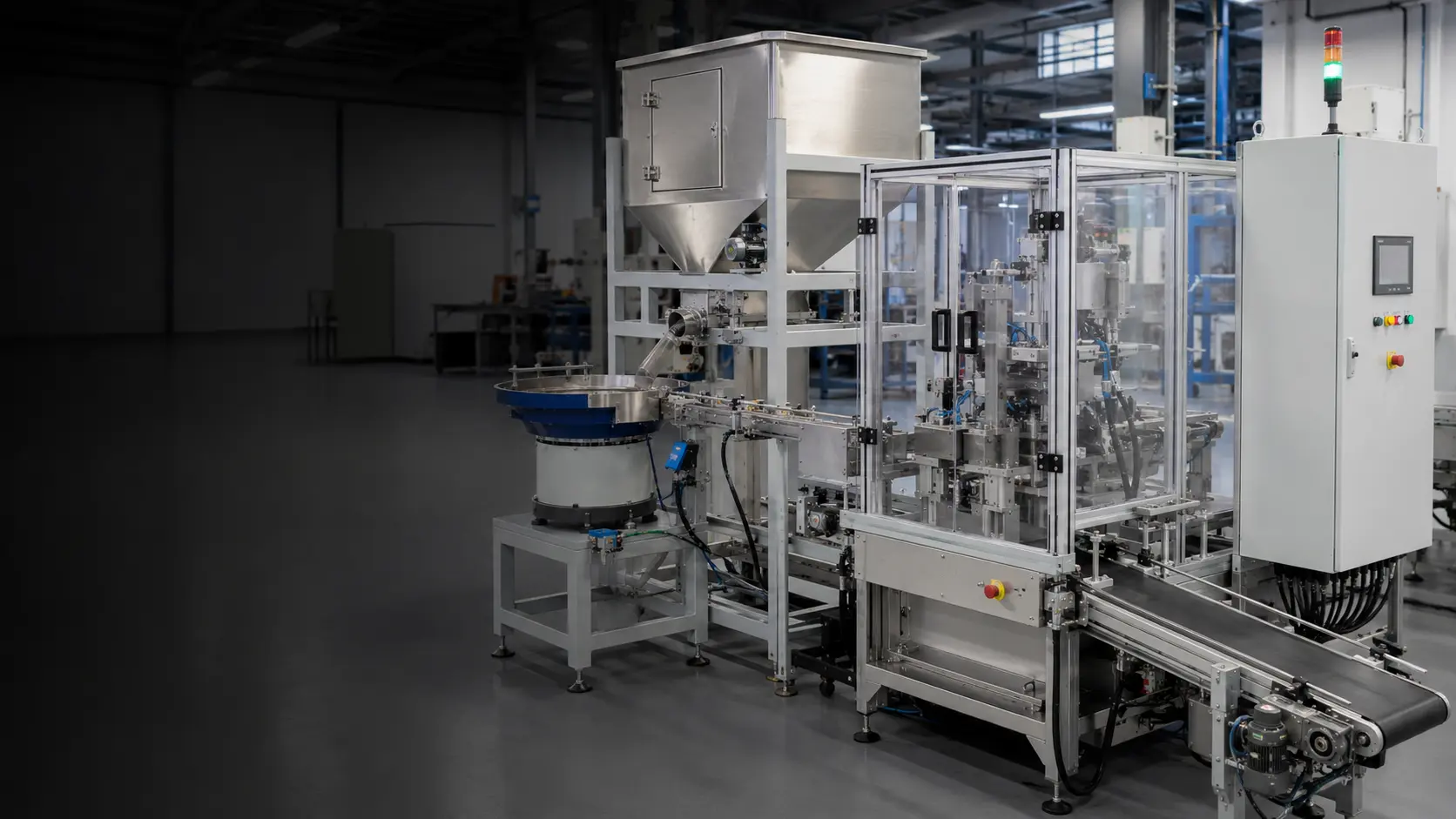

Hopper, bowl feeder and conveyor beside an enclosed machine and control cabinet.
Mechanical integration

Design around the point your process uses the part.

The discharge height, direction, datum, queue pressure and transfer method should be fixed with the receiving equipment team. A shared interface drawing prevents assumptions becoming late changes.

  • General arrangement and service envelope
  • Track centreline, discharge height and support
  • Robot pick, chute, tube or direct machine transfer
  • Change-part storage and maintenance access
  • Guarding boundary and interlock responsibility
Controls integration

Agree behaviour—not just an I/O count.

Signals only make sense when the response is defined. The control philosophy should state how the feeder fills its buffer, pauses, requests components, detects low supply, reports faults and recovers after an interruption.

Host machine → feederEnable, run permission, demand, reset, mode and safe-state conditions
Feeder → host machineReady, part available, low level, warning, fault and intervention request
Coordinated recoveryRestart sequence after empty track, rejected part, guard opening, jam or loss of utilities
Acceptance-first engineering

Write the test before the equipment is built.

Clear conditions protect both project teams. The test should reflect production components, realistic loading and the complete accepted output—not an unloaded peak.

Plan representative component trials
Acceptance itemDefine before manufactureEvidence at test
Component setRevisions, batches, tolerances and conditionRecorded sample references
Accepted orientationFace, lead feature, rotation, datum and pitchUsable discharge only
Sustained outputRate, test duration, normal rejects and recirculationCounted accepted parts over time
QualityPermitted marking, damage and false decisionsAgreed inspection method
RecoveryEmpty, jam, guard opening and restart statesDemonstrated sequence
Straight answers

Complete feeder integration questions

Useful starting points. Final recommendations are based on your component, presentation requirement and machine cycle.

Can vision inspection be integrated into a feeder system?

Yes. Vision can verify orientation, presence, variant, colour or selected visible features before release. Inspection limits, lighting, reject handling and the response to uncertain results must be defined objectively and proven with representative samples.

What is an escapement in a parts feeder?

An escapement separates and releases one component—or a defined group—from the feed track when the downstream machine requests it. It controls pitch and presentation while preventing the queue behind it from entering the pick or assembly position.

Can a parts feeder connect to an existing machine or robot?

Yes. The interface can provide a continuous queue, one-part-on-demand presentation, a robot pick position, a chute or a controlled transfer. Mechanical datum, discharge height, I/O, call-for-part logic, fault states, guarding and recovery behaviour should be agreed with the host-machine team.

How do you reduce feeder noise and part damage?

Options include step feeding, lined contact surfaces, controlled bulk levels, lower drop heights, optimised recirculation, acoustic guarding and a feeding principle that avoids unnecessary component-to-component contact. Noise and cosmetic acceptance should be part of the trial criteria.

Do you supply complete guarded parts feeding systems?

Projects can be scoped as complete systems including bulk loading, feeding, orientation, inspection, buffering, escapement, electrical controls, safeguarding and the defined connection to downstream equipment. The final boundary and responsibilities are confirmed in the project specification.
